型號226 減壓閥

單級鋁制閥身，配套SCOTTY110氣瓶

Elgiloy? 隔膜降低泄漏率，確保準確，穩定的壓力控制。

集成過濾器保護內部零件，延長減壓閥壽命

CGA-180

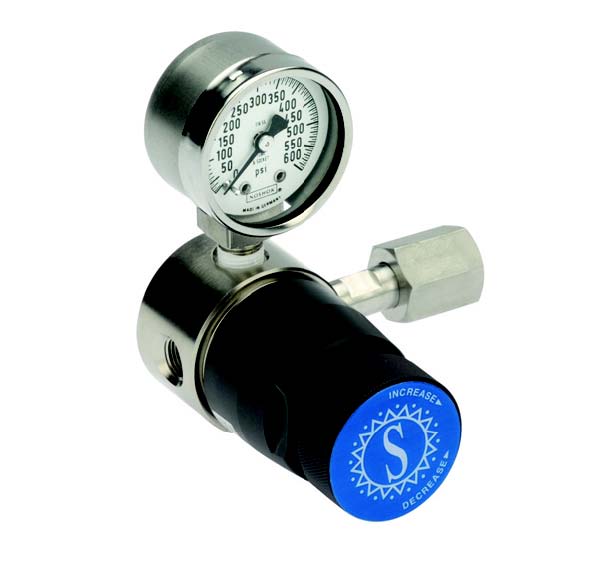

Model 226

Designed for use with SCOTTY? 48, 74 and 110 cylinders. The 226A, B and C

versions of this regulator feature cylinder pressure gauges, while the 226AD, BD and CD feature delivery pressure gauges.

Benefits/Features

Compact size and light weight design for easy

transportability.

Elgiloy? diaphragm minimizes diffusion

resistance and provides accurate and stable

pressure control.

Sintered filter protects the internal components

and extends service life.

規格

Inlet Pressure:

500 psig (35 bar), 2000 (137 bar) maximum

Operating Temperature Range:

-40°F to 140°F (-40°C to 60°C)

Flow Coefficient: Cv = 0.06

Supply Pressure Effect:

2 psi per 100 psi (0.1 bar per 7 bar)

Regulator Inlet Port: 1/8" NPT Female

Inlet Connection: Specify CGA

出口連接: 1/8" NPT Female

and all other configurations

Gauge Size: 1.5" (41 mm) face

Weight: 0.7 lb. (0.3 kg)

材料

Body: 鋁

Diaphragm: Elgiloy?

Seats: PCTFE

Seals: Teflon?

Bonnet: 鋁

儀表: 不銹鋼

訂貨信息：

型號226 減壓閥

* Specify CGA.
